Architecture diagram templates

Start with a system context, data model or request flow. Each template includes YAML you can copy and edit.

•

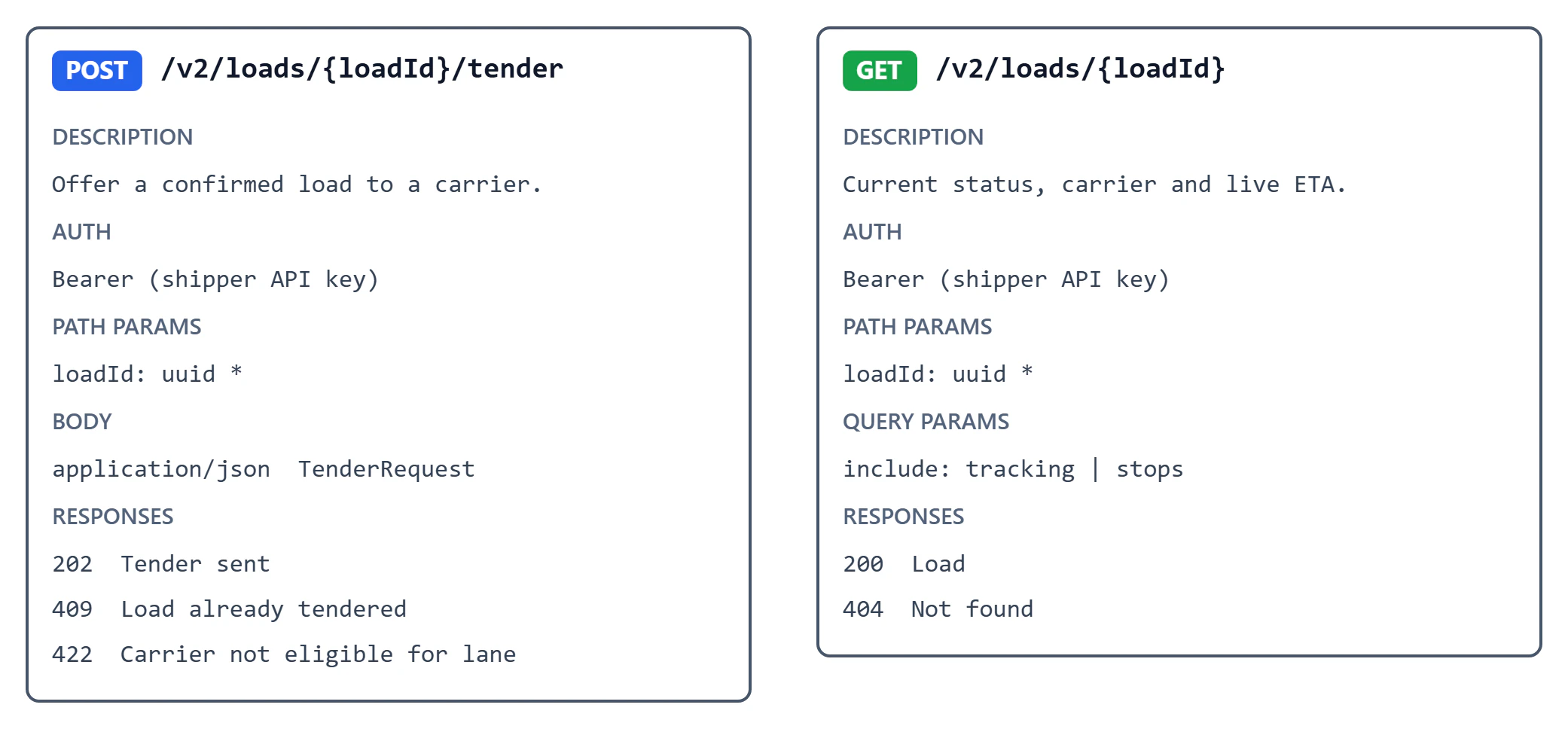

  Shipper REST endpoints

  Document quote and booking requests, webhook subscriptions and load status responses.

•

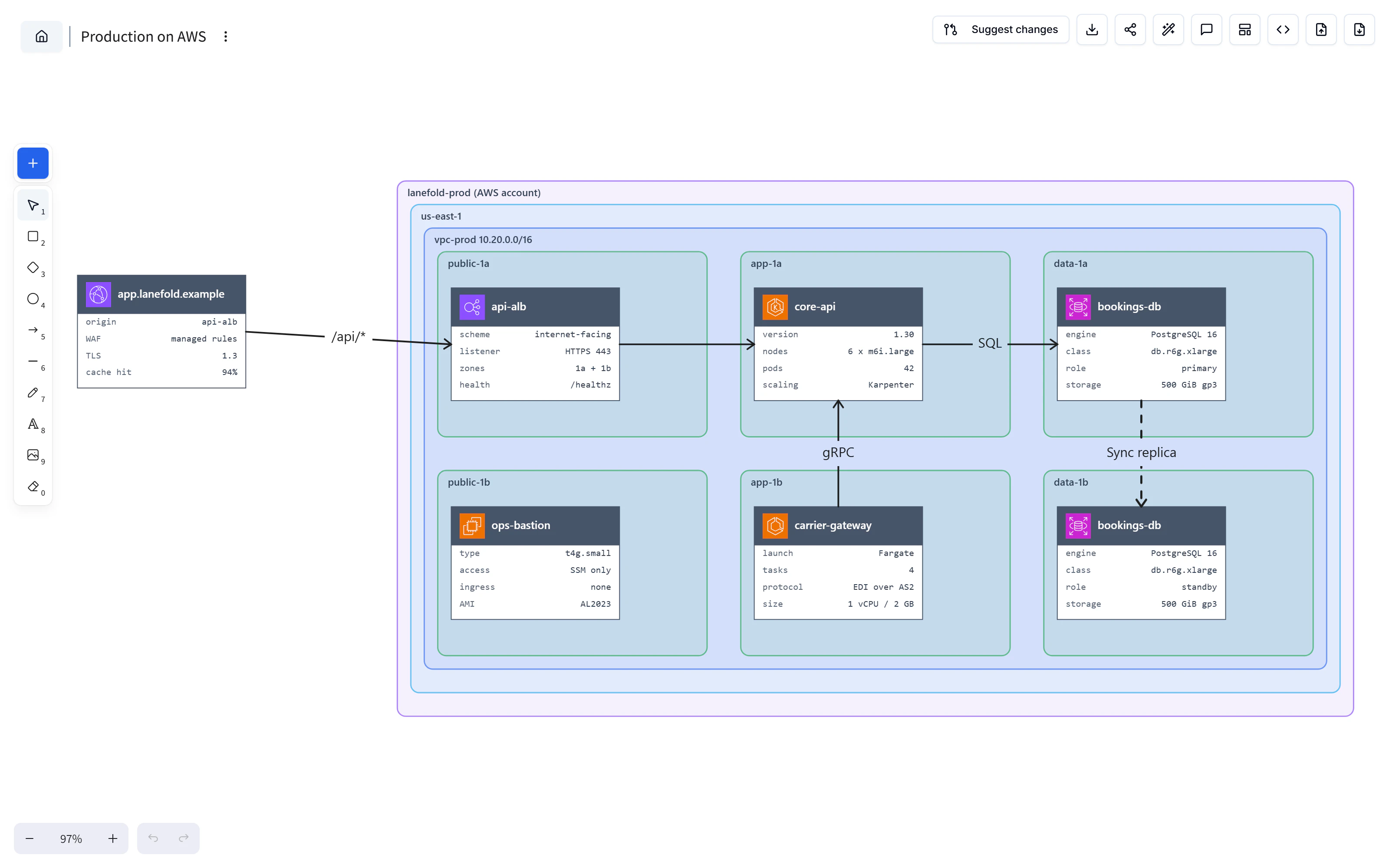

  AWS deployment architecture

  Place an API cluster and PostgreSQL databases inside account, VPC and subnet boundaries.

•

  C4 system context

  Map an outreach platform, the person who uses it and its email provider.

•

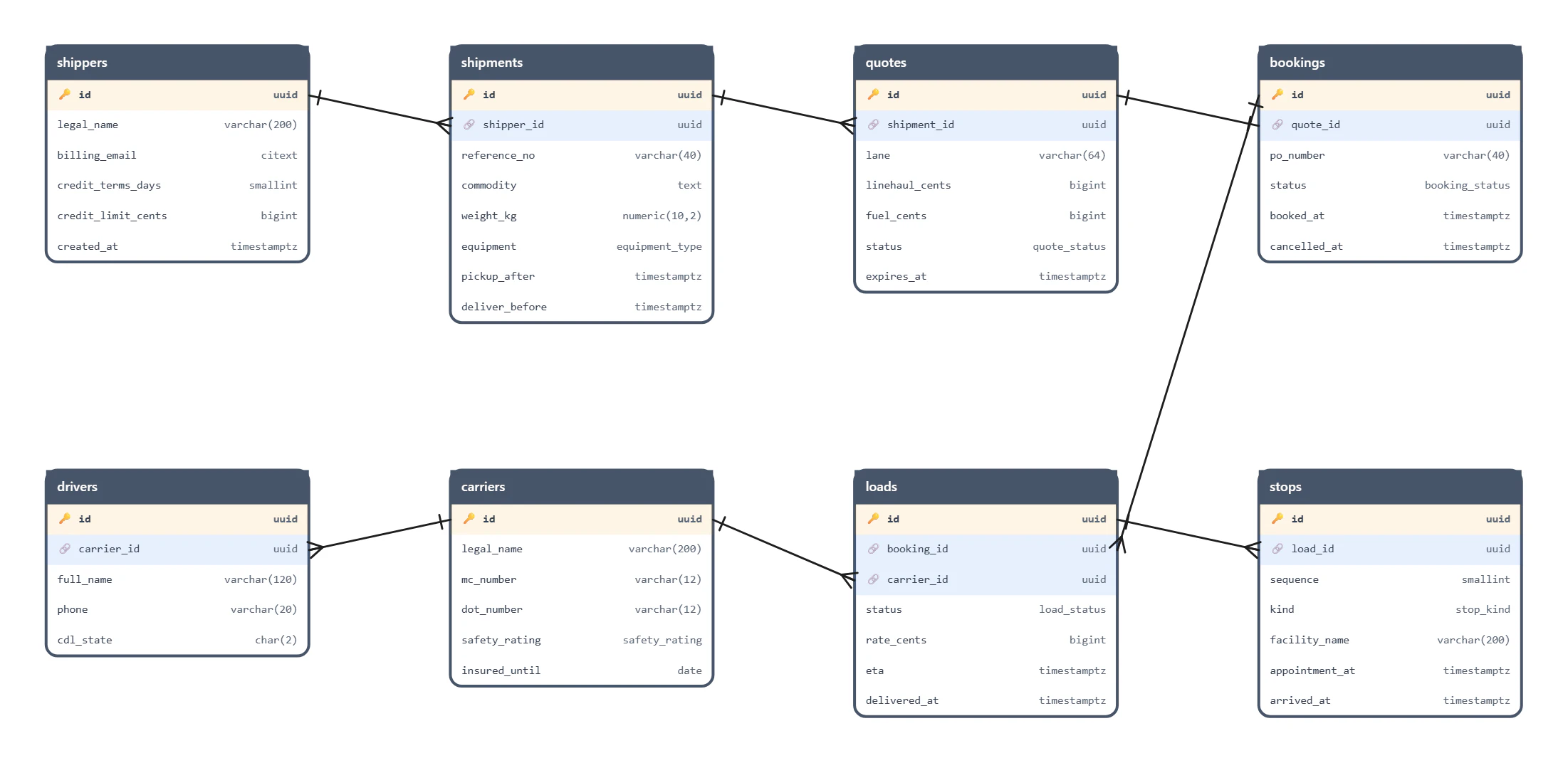

  Booking data model

  Trace foreign keys between freight shipments, quotes, bookings and loads.

•

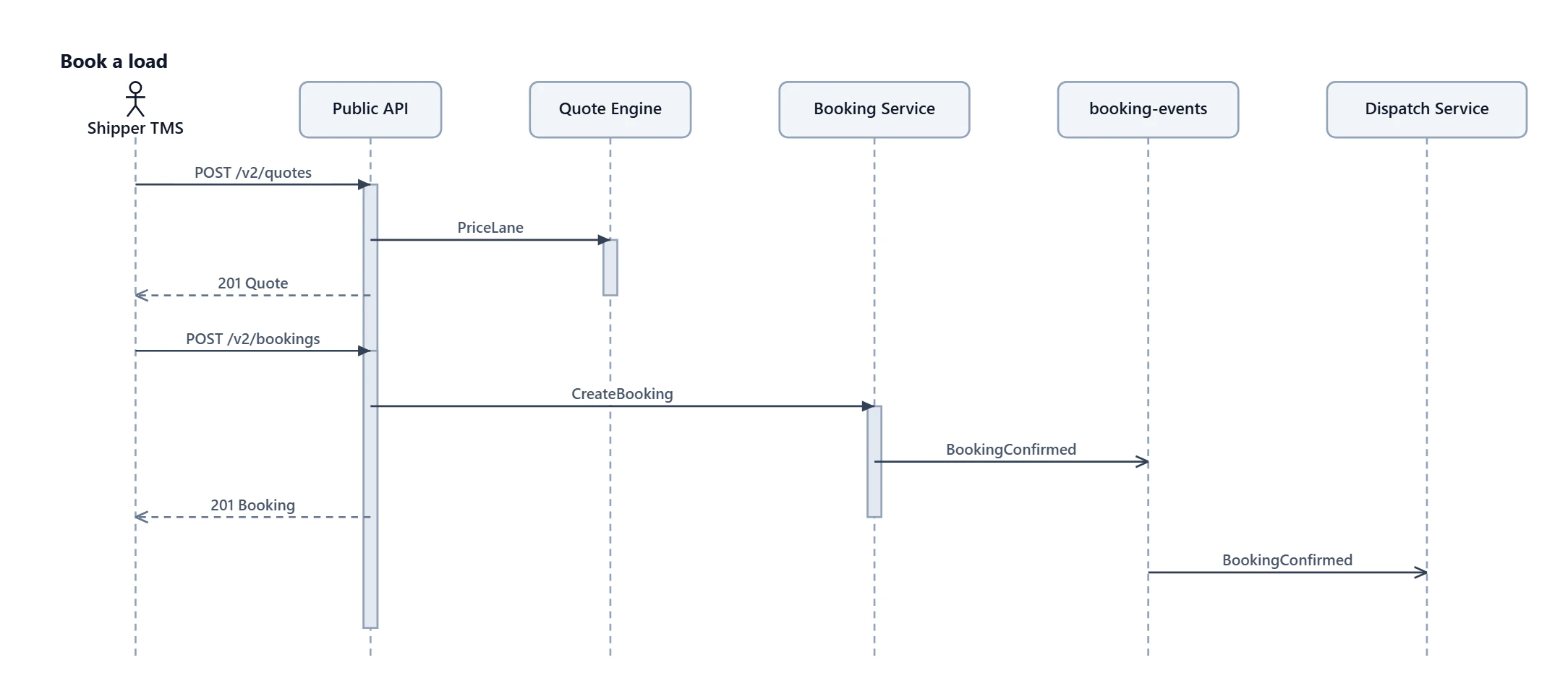

  Book a load sequence

  Follow a quote request through booking confirmation and asynchronous dispatch.
